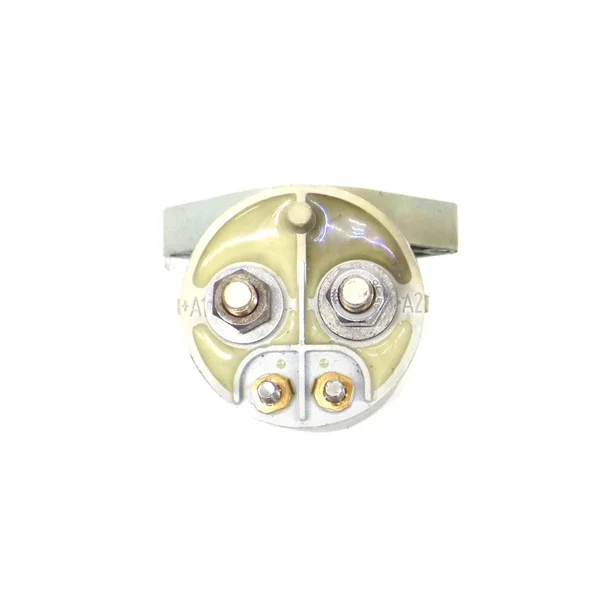

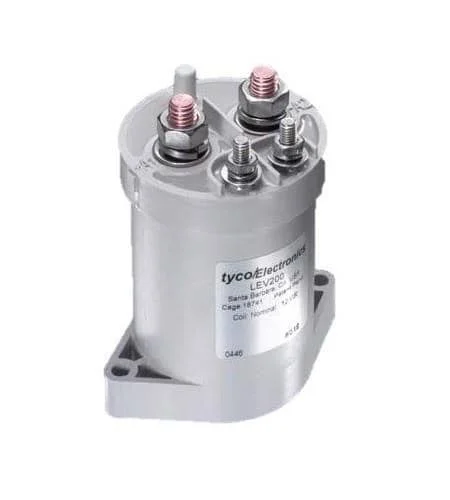

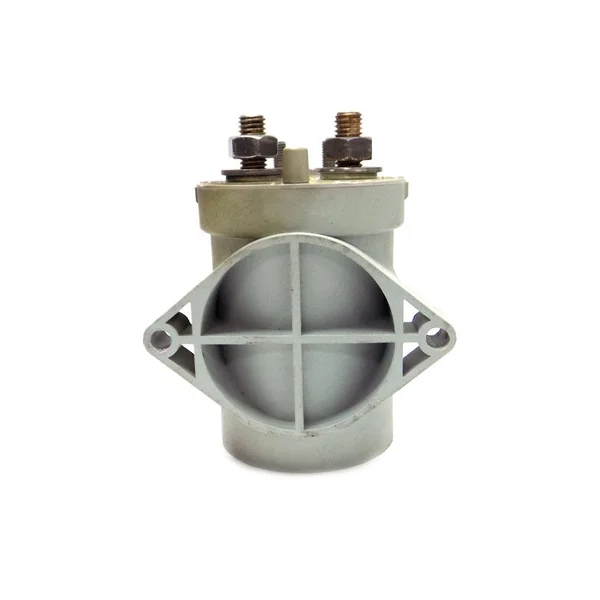

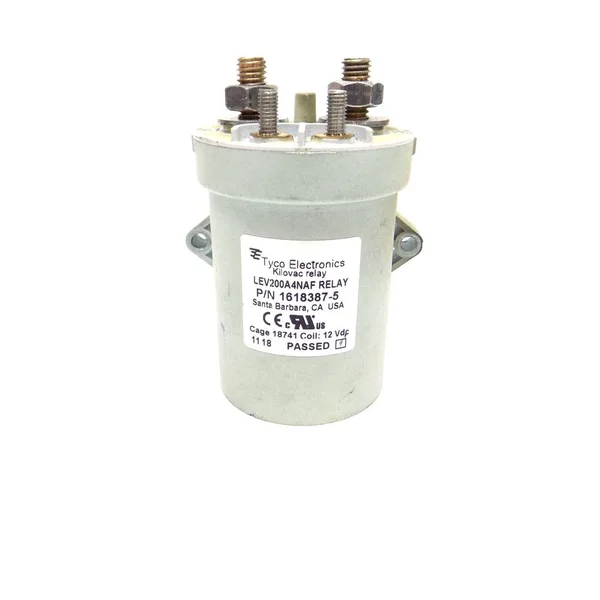

TE Connectivity LEV200A4NAF Contactor

Description

Versatile coil/power connections. Product Overview The LEV200A4NAF is a Side-mount Contactor with SPST-NO-DM contact, compact epoxy-sealed resin enclosure, male 10mm x M8 threaded power terminals and studs #10-32 threaded connector. This LEV100-series contactor features hermetically sealed intrinsically safe, operates in explosive/harsh environments without oxidation or contamination of contacts, including long periods of non-operation. Versatile coil/power connections. Designed and built in accordance to AIAG QS9000. 40 to 65 C Operating temperature range Harsh Environment and Mil Spec compatible Applications Power Management, Safety Load Current Inductive: 500A Relay Mounting: Flange Operating Voltage: 900VDC Contact Configuration: SPST-NO No. of Poles: 1 Pole Switching Current AC1: 500A Coil Voltage VDC Nom: 12V Load Current Resistive: 500A Product Range: LEV200 Series. Designed and built in accordance to AIAG QS9000. -40 to 65 C Operating temperature range Harsh Environment and Mil Spec compatible Applications Power Management, Safety Load Current Inductive: 500A Relay Mounting: Flange Operating Voltage: 900VDC Contact Configuration: SPST-NO No. of Poles: 1 Pole Switching Current AC1: 500A Coil Voltage VDC Nom: 12V Load Current Resistive: 500A Product Range: LEV200 Series. Product Overview The LEV200A4NAF is a Side-mount Contactor with SPST-NO-DM contact, compact epoxy-sealed resin enclosure, male 10mm x M8 threaded power terminals and studs #10-32 threaded connector.

Key Features

• Designed and built in accordance to AIAG QS9000.
• This LEV100-series contactor features hermetically sealed intrinsically safe, operates in explosive/harsh environments without oxidation or contamination of contacts, including long periods of non-operation.
• 40 to 65 C Operating temperature range Harsh Environment and Mil Spec compatible Applications Power Management, Safety Load Current Inductive: 500A Relay Mounting: Flange Operating Voltage: 900VDC Contact Configuration: SPST-NO No.
• Designed and built in accordance to AIAG QS9000. -40 to 65 C Operating temperature range Harsh Environment and Mil Spec compatible Applications Power Management, Safety Load Current Inductive: 500A Relay Mounting: Flange Operating Voltage.
• of Poles: 1 Pole Switching Current AC1: 500A Coil Voltage VDC Nom: 12V Load Current Resistive: 500A Product Range: LEV200 Series.
• Product Overview The LEV200A4NAF is a Side-mount Contactor with SPST-NO-DM contact, compact epoxy-sealed resin enclosure, male 10mm x M8 threaded power terminals and studs #10-32 threaded connector.
