Niagara Cutter N88632 Cobalt Steel Square Nose End Mill inch Weldon Shank TiCN Finish Finishing Cut 30 Degree Helix 4 Flutes 6

Description

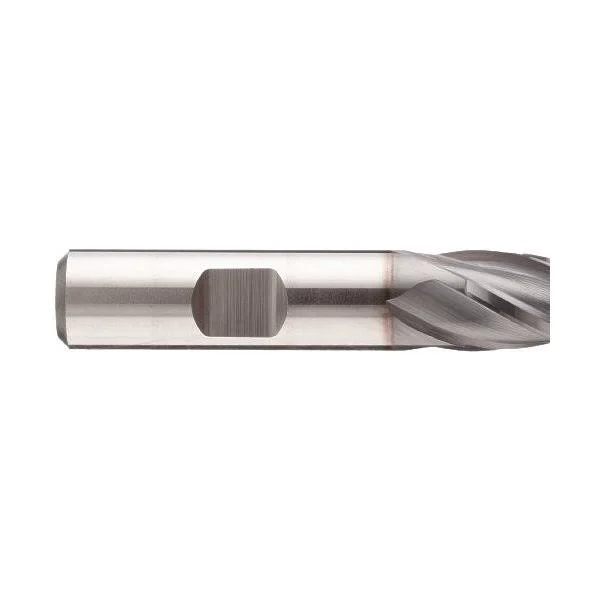

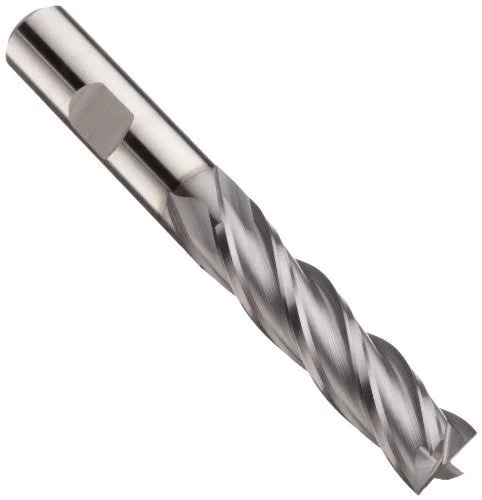

The Niagara Cutter SPC408 TiCN-coated cobalt steel square nose end mill has a 30-degree helix angle for milling a wide range of materials, including high-temperature alloys. The number of flutes varies; fewer flutes provide better chip-carrying capacity, while more flutes produce a finer finish. The TiCN coating offers increased hardness and greater abrasion resistance than uncoated or TiN-coated tools. The cobalt steel substrate can be run at faster speeds and stays sharp longer than high-speed steel tools, while offering greater resistance to heat and abrasion. The 30-degree helix angle supports general-purpose applications. It balances lower angles strong cutting edge for difficult-to-machine materials with higher angles increased cutting action. The tools square end has straight cutting edges that create sharp, unrounded cuts, while the center-cutting design has cutting teeth at the end of the tool that support making pocket cuts, profiling, and slotting. Cutting diameter tolerance is +0.001 to -0.000. The end mill has a Weldon shank. End mills are designed to remove material and create multi-dimensional shapes and profiles. They have cutting edges along the outside diameter and flutes that remove chips from the cutting area and allow cooling fluids to enter. If heat is not reduced effectively, the tools cutting edges will dull and additional material buildup can occur. The number of flutes can range from two to eight. The number of flutes can range from two to eight.

Key Features

• The Niagara Cutter SPC408 TiCN-coated cobalt steel square nose end mill has a 30-degree helix angle for milling a wide range of materials, including high-temperature alloys.

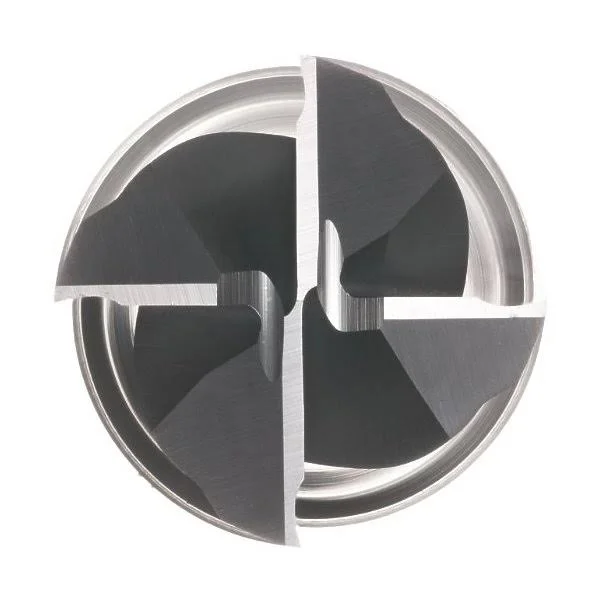

• The tools square end has straight cutting edges that create sharp, unrounded cuts, while the center-cutting design has cutting teeth at the end of the tool that support making pocket cuts, profiling, and slotting.
• The number of flutes varies; fewer flutes provide better chip-carrying capacity, while more flutes produce a finer finish.
• The cobalt steel substrate can be run at faster speeds and stays sharp longer than high-speed steel tools, while offering greater resistance to heat and abrasion.
• End mills are designed to remove material and create multi-dimensional shapes and profiles.
• The 30-degree helix angle supports general-purpose applications.
