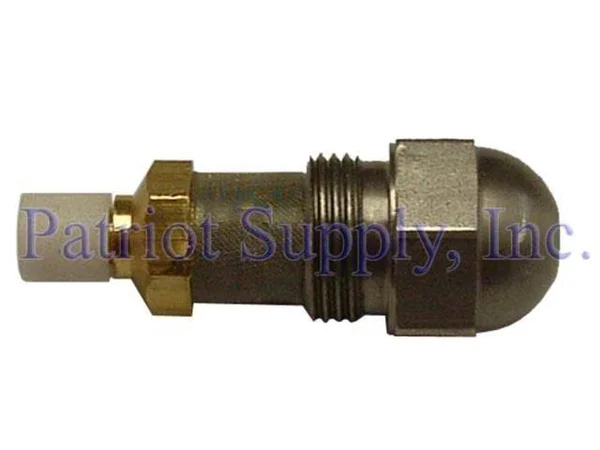

Monarch 13.50 Gallon 60 Degree BPS BY-PASS Nozzle 135060BPS

Description

Both the capacity and spray angle rating are based on having the by-pass line closed. Spray angle widens 5 Degrees -10 Degrees with the by-pass wide open. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions. line pressure, and at this pressure they will handle up to 70 S.S.U. The orifice flow is regulated by controlling the by-pass line pressure. The BPS nozzles are designed and tested for operation at 100 psi. The BPS nozzles are designed and tested for operation at 100 psi. The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles. Monarch 13.50 Gallon Per Hour 60 Degree BPS Bypass Nozzle (135060BPS, M135060BPS) Monarch 13.50 GPH 60 Degrees BPS Nozzle (Spray Pattern Is Semi-Solid) The BPS nozzles produce variable orifice flow rates by by-passing fluid from the nozzle swirl chamber. operating viscosity oil. The combination locknut-strainer support is made of brass with a Monel strainer screen and a Viton „O“ ring. The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles. The BPS nozzles are designed and tested for operation at 100 psi. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions. It is possible to operate standard BPS nozzles up to 250 psi.

Key Features

• Monarch 13.50 Gallon Per Hour 60 Degree BPS Bypass Nozzle (135060BPS, M135060BPS) Monarch 13.50 GPH 60 Degrees BPS Nozzle (Spray Pattern Is Semi-Solid) The BPS nozzles produce variable orifice flow rates by by-passing fluid from the nozzle.
• The orifice flow is regulated by controlling the by-pass line pressure.
• The BPS nozzles are designed and tested for operation at 100 psi.
• The combination locknut-strainer support is made of brass with a Monel strainer screen and a Viton „O“ ring.
• The nozzle tip and disc are made of the same heat resisting, high chrome grade of stainless steel used in our simplex or regular domestic oil burner nozzles.
• The BPS nozzles are designed and tested for operation at 100 psi. on #2 fuel oil, with the capacity and spray angle stamped on the nozzles at these conditions.
