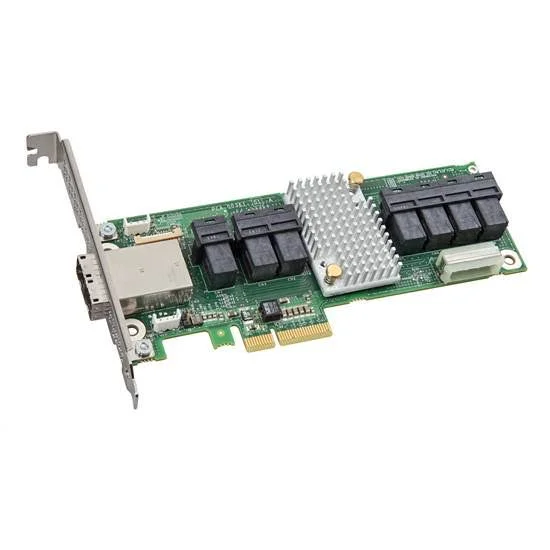

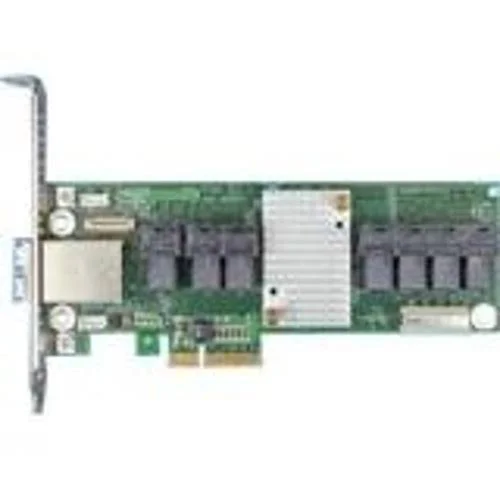

Intel RES3FV288 Raid Expander

Description

For a low-cost value-added alterative to high port count RAID cards, select the Intel RAID Expander RES3FV288. As the complement for Intel's SAS-3 generation RAID cards, the RES3FV288 offers flexibility for architecting a high drive count (>8 drive) storage solution in any sized system. Designed with a low profile, MD2 form factor, the RES3FV288 can be used in any server add-in card slot including a low profile slot in a 2U rack system. The RES3FV288, powered by a high performance SAS 3.0 capable expander, enables the connection of up to 28 inside-the-box SAS or Serial ATA (SATA) devices; plus it delivers 8 external ports for connection to a JBOD. Each expander port is capable of performing SAS and SATA transfers based on the speed of the host or target at either 12Gb/s or 6Gb/s. Furthermore, 6Gb/s signals are aggregated by the expander to allow for 12Gb/s communication with RAID add-in cards capable of this higher data rate. The RES3FV288 supports management functions such as discovery and enclosure management, and can be cascaded to accommodate as many drives as the associated SAS/RAID card allows. For a low-cost value-added alterative to high port count RAID cards, select the Intel RAID Expander RES3FV288. Designed with a low profile, MD2 form factor, the RES3FV288 can be used in any server add-in card slot including a low profile slot in a 2U rack system.

Key Features

• For a low-cost value-added alterative to high port count RAID cards, select the Intel RAID Expander RES3FV288.
• Designed with a low profile, MD2 form factor, the RES3FV288 can be used in any server add-in card slot including a low profile slot in a 2U rack system.
• The RES3FV288 supports management functions such as discovery and enclosure management, and can be cascaded to accommodate as many drives as the associated SAS/RAID card allows.
• The RES3FV288, powered by a high performance SAS 3.0 capable expander, enables the connection of up to 28 inside-the-box SAS or Serial ATA (SATA) devices; plus it delivers 8 external ports for connection to a JBOD.
• As the complement for Intel's SAS-3 generation RAID cards, the RES3FV288 offers flexibility for architecting a high drive count (>8 drive) storage solution in any sized system.
• Furthermore, 6Gb/s signals are aggregated by the expander to allow for 12Gb/s communication with RAID add-in cards capable of this higher data rate.
