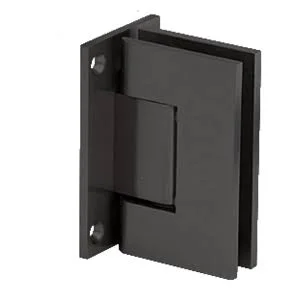

CRL GEN037MBL Matte Black Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Shower Door Hardware

Description

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. GENP1N) are available to accommodate "off-angle" installations. One side of the Pin is marked 90 Degrees. Custom Pivot Pin: Custom Pivot Pins (Cat. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). Contact Technical Sales Shower Door Division. The Pin can be rotated (not flipped upside down) to activate the other side. The opposite side is marked 85 Degrees. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. Custom finishes are available on request. In addition Custom Pivot Pins are available to accommodate "off-angle" installations. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin. Made of solid brass with all moving parts (pins and springs) in stainless steel. (54 kg) with a maximum door width of 32" (813 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into shower interior. Use only the template included with this hinge. (36 kg) with a maximum door width of 28" (711 mm). If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department.

Key Features

• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass.
• GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• Made of solid brass with all moving parts (pins and springs) in stainless steel.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position or 5 degree Pre-Set Model for tighter closure into.
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
