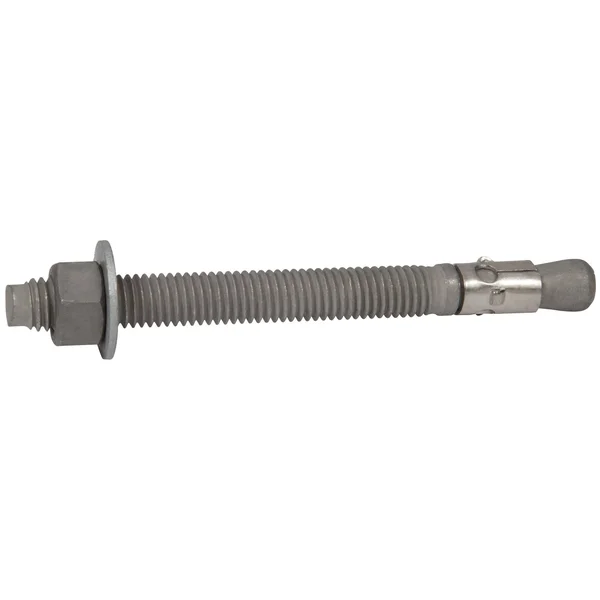

CONFAST 5/8x22 x 6x22 Hot-Dipped Galvanized Wedge Anchor (Box of 20)

Description

The 5/8in diameter anchor requires the hole in the fixture to be 7/8in. Environment the anchor is designed for use in a damp environment. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only. The hole should be drilled with carbide tipped bit that meets ansi standards and used in a hammer drill. This will ensure that the minimum embedment of 2-3/4in will be met. Maximum fixture thickness the maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 2-5/8in. Diameter of anchor the diameter of the anchor is 5/8in. This anchor is designed for use in concrete only, and should never be used in block or brick base material. Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete. Applications the anchor is made from carbon steel, and is hot-dipped galvanized. Fixture hole diameter the hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length. Edge distance it is very important not to install the anchor any closer than 3-1/8in from an unsupported edge of the concrete.

Key Features

• Minimum embedment the minimum anchor embedment into the concrete is 2-3/4in.
• Diameter of anchor the diameter of the anchor is 5/8in.
• Applications the anchor is made from carbon steel, and is hot-dipped galvanized.
• Therefore, the anchor must be installed so that a minimum of 2-3/4in of the anchor is embedded into the concrete.
• Length anchor the length of the anchor is 6in thread length the length of the threads on the anchor is 4in in length.
• Hole diameter/bit diameter the anchor requires a 5/8in hole to be drilled in the base material concrete only.
