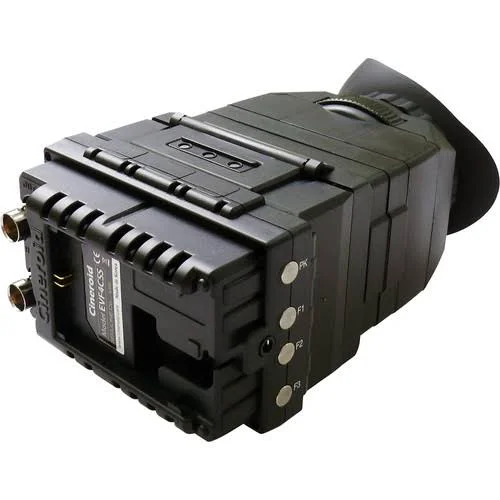

Cineroid EVF4CSE Electronic Viewfinder with SDI Input Loop Through Output

Description

The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution. A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having perfect eyesight. Color mode provides a colored wash to overexposed areas, while zebra can be set to fixed or moving lines and can display at 3, 5, 8, 11% above or below the trigger point. The USB port is for firmware updates. The EVF4CSE features two modes. Red mode highlights the in focus areas in red, while the sharpness mode outlines in white. The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder. The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC. The Cineroid EVF4CSE Electronic Viewfinder with SDI Input / Loop-Through Output offers an eyepiece view or an LCD view. False Color The False Color feature provides under/over luminance warning by presenting the image as a series of color values representing exposure. Peaking highlights the sharpest (most in focus) areas of the image with a color outline. Crop Guide Darkens portions of the viewing area to help frame a shot in accordance with what it will look like when later cropped to be viewed in different aspect ratios.

Key Features

• The EVF4CSE is powered by optional Cannon LP-E6 batteries or from an optional external power supply, that provides 6 to 17 VDC.
• A headphone jack and built-in speaker allow you to monitor audio and a 1/4"-20 threaded mounting hole allows you to mount the EVF to your camera using optional articulating arms.
• The eyepiece/optical loupe can be flipped up out of the way much like a traditional ENG viewfinder or detached completely to reveal a 3.2" LCD with an 800 x 480 resolution.
• The EVF supports a variety of focus and exposure tools, including two forms of peaking, false color, crop guide, pixel-to-pixel mapping and image flip.
• The SDI input and loop-through SDI output allows you to feed the EVF and send the unmodified signal downstream to an optional director's viewfinder, video village or other display / recorder.
• A built-in adjustable diopter and removable extension frame allows you to use the EVF even without having eyesight.
