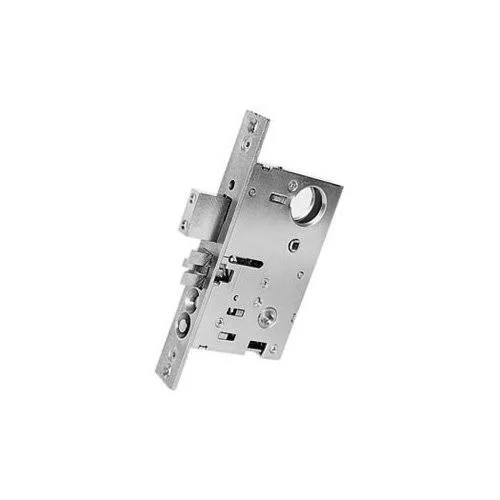

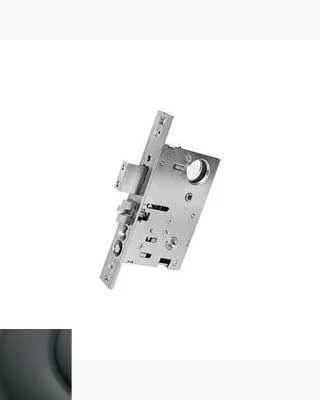

Baldwin 6315102R Right Hand Bathroom and Bedroom Mortise Lock in Oil Rubbed Bronze

Description

For use with Baldwin Mortise knobs on either side of the door. Vital interior working parts are made of solid hot forged brass or steel for a lifetime of trouble-free operation. Baldwin mortise lock case only - cylinder not supplied. Standardized heavy steel case is smooth, easy to mortise, and assures snug and solid fit in door mortise. Vital interior working parts are made of solid hot forged brass or steel for a lifetime of trouble-free operation. All lock cases are constructed of heavy gauge steel (0.093"/ 2.4mm - material) and plated with a protective rust-resistant coating to retard oxidation. All locks and strikes are designed to fit standard preparation ANSI A115.1 (face cutouts are subject to variation). Locks have adjustable forged brass lock fronts, protected by armored scalp fronts for strength and protection against tampering. The bevel of front is adjustable from flat to standard bevel of 0.025" on 2" (3mm on 51mm). Equipped with a 1" (25mm) throw forged brass deadbolt with two hardened steel inserts for maximum protection and security and anti-friction latch bolt with 0.75" (19mm) throw. This is a Baldwin Bathroom Mortise lock: latch bolt is operated by knobs on either side. Deadbolt by turn piece inside and emergency key outside. When extended, deadbolt deadlocks latch bolt. Knob-strength 0.29" (7mm) hub with two-way rotation. For use with Baldwin Mortise knobs on either side of the door. Hub to Turn Piece Centers: 2.25" (57mm).

Key Features

• Standardized heavy steel case is smooth, easy to mortise, and assures snug and solid fit in door mortise.
• Knob-strength 0.29" (7mm) hub with two-way rotation.
• Equipped with a 1" (25mm) throw forged brass deadbolt with two hardened steel inserts for maximum protection and security and anti-friction latch bolt with 0.75" (19mm) throw.
• Vital interior working parts are made of solid hot forged brass or steel for a lifetime of trouble-free operation.
• The bevel of front is adjustable from flat to standard bevel of 0.025" on 2" (3mm on 51mm).
• All lock cases are constructed of heavy gauge steel (0.093"/ 2.4mm - material) and plated with a protective rust-resistant coating to retard oxidation.
