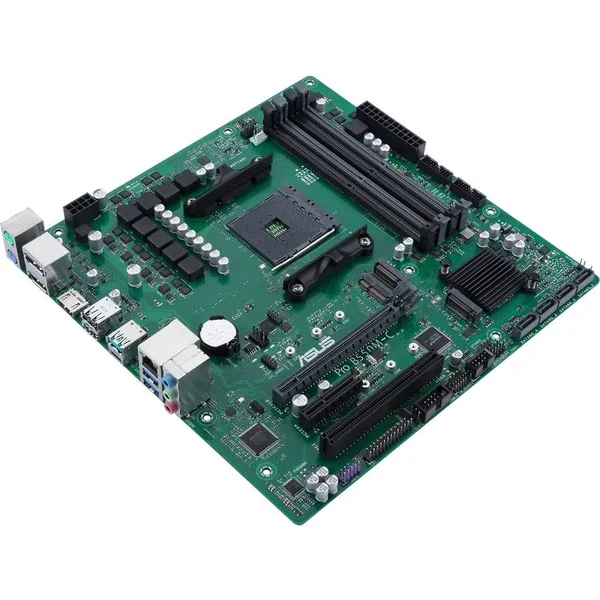

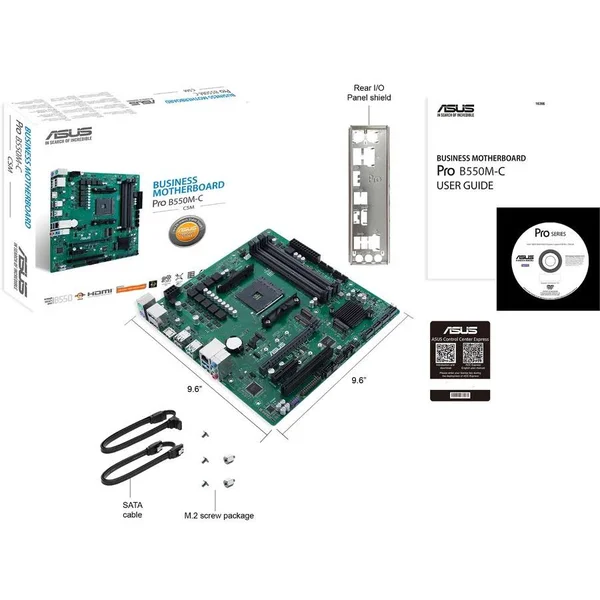

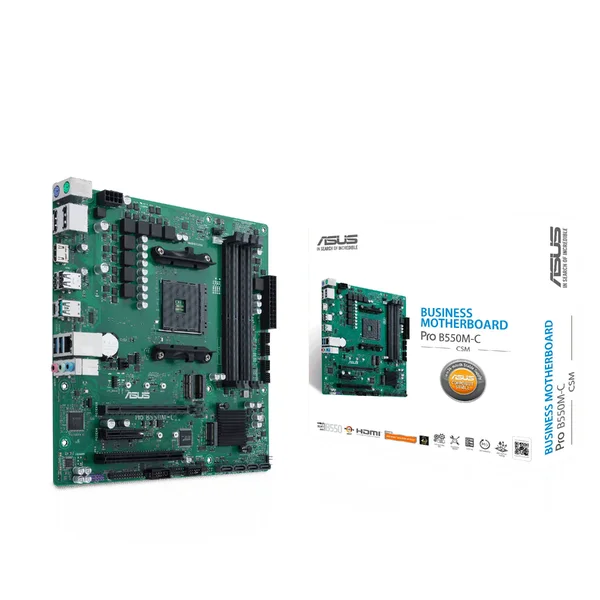

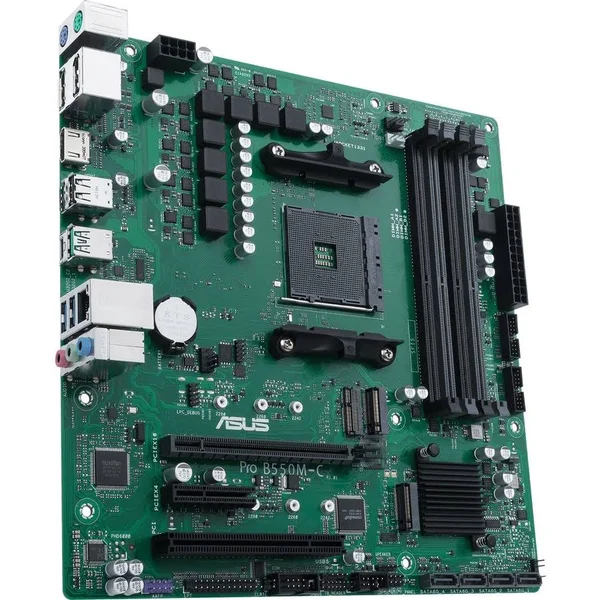

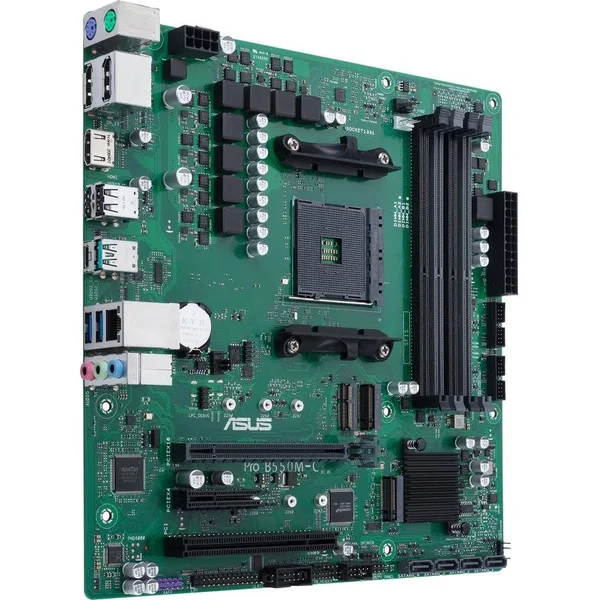

Asus Pro B550M-C/CSM Desktop Motherboard - AMD Chipset - Socket AM4

Description

Internal headers support four USB 3.2 Gen 1 and four 2.0 Type-A ports as well as two case fans a chassis intrusion alarm clear CMOS button debugging LED Thunderbolt and front speakers. Audio connectors include three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet. Micro-ATX Form Factor, AMD B550 Chipset, AM4 Socket, 4 x Dual-Channel DDR4-4800 (OC), 4 x SATA III, 2 x M.2, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x4 Slot, 1 x PCI Slot, 7.1-Channel Realtek ALC887/897 Codecs, Supports Wireless Adapter Cards. Connect an older mouse or keyboard using two PS/2 ports. Designed for commercial applications this micro-ATX motherboard incorporates the B550 chipset and AM4 socket making it compatible with AMD 3000- 4000 G- and 5000-series processors. Audio connectors include three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet. An E-Key M.2 slot is also present supporting an optional user-installed wireless adapter card.A rear stainless-steel I/O panel sports one USB 3.2 Gen 2 Type-A port and one Type-C port as well as two USB 3.2 Gen 1 and two 2.0 Type-A ports. The ASUS Pro B550M-C/CSM is compatible with the Windows 10 64-bit operating system. Connect drives using four SATA III or two M.2 M-Key interfaces. Various adapter cards can be installed using the PCIe 4.0 x16 PCIe 3.0 x4 and 5V 32-bit PCI connectors. Interface with multiple displays thanks to an HDMI and two DisplayPort outputs.

Key Features

• Connect drives using four SATA III or two M.2 M-Key interfaces.
• Various adapter cards can be installed using the PCIe 4.0 x16 PCIe 3.0 x4 and 5V 32-bit PCI connectors.
• Micro-ATX Form Factor, AMD B550 Chipset, AM4 Socket, 4 x Dual-Channel DDR4-4800 (OC), 4 x SATA III, 2 x M.2, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x4 Slot, 1 x PCI Slot, 7.1-Channel Realtek ALC887/897 Codecs, Supports Wireless Adapter Cards.
• Audio connectors include three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet.
• Designed for commercial applications this micro-ATX motherboard incorporates the B550 chipset and AM4 socket making it compatible with AMD 3000- 4000 G- and 5000-series processors.

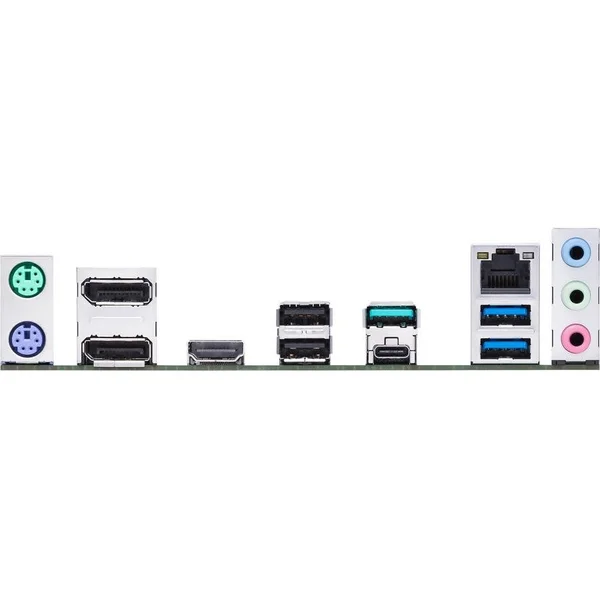

• An E-Key M.2 slot is also present supporting an optional user-installed wireless adapter card.A rear stainless-steel I/O panel sports one USB 3.2 Gen 2 Type-A port and one Type-C port as well as two USB 3.2 Gen 1 and two 2.0 Type-A ports.
