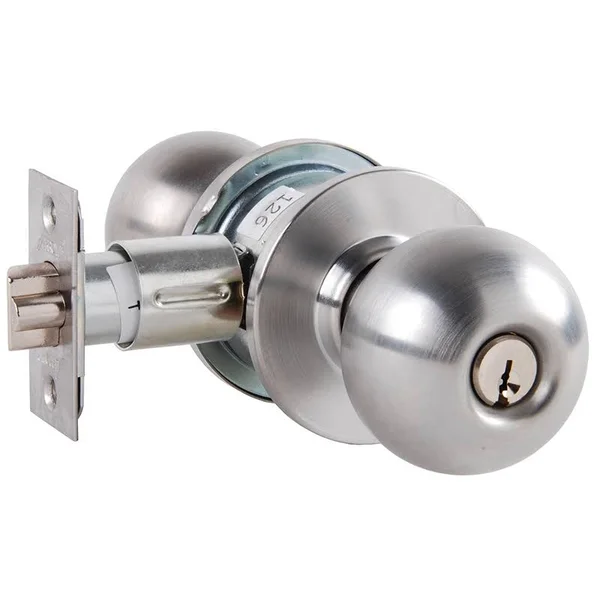

Arrow MK12TA 26D Cylindrical Lock

Description

All strikes have a 1-1/4" (31.75mm) lip to center dimension. Requires standard 2-1/8" (53.97mm) bore through door. Latch – Brass with 1/2" (12.7mm) throw. The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. Latch Front – Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm). Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary. 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Latch housing is steel, with zinc dichromate finish for corrosion resistance. Arrow MK Series offer the designer, architect and contractor simple solutions to accessibility requirements. Backset – 2-3/8" (60.32mm) standard. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. 7/8" (22.225mm) bore in edge of door is required. Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). Strike – Brass, bronze or stainless steel. Handing– Reversible.

Key Features

• Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm).
• Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm).
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm).
• Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in.
• Requires standard 2-1/8" (53.97mm) bore through door.
• 2-3/4" (69.85mm), 3-3/4" (95.25mm) and 5" (127mm) available.
