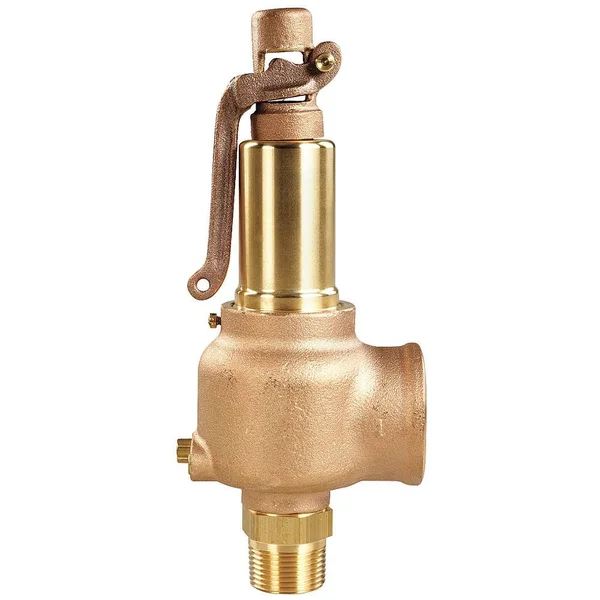

Aquatrol - 740DC-M1A-25 - Brass/Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type

Description

This listing is for each. Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 25 psi Disc Material Stainless Steel Overall Height 7 3/8 in Application. High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness. Factory preset and sealed to prevent tampering. Range -320 Degrees to 406 Degrees F Test Lever Yes Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption). Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 25 psi Disc Material Stainless Steel Overall Height 7 3/8 in Application Air, Gas Overall. Not adjustable.

Key Features

• This listing is for each.
• Factory preset and sealed to prevent tampering.
• Range -320 Degrees to 406 Degrees F Test Lever Yes Standards ASME Section VIII / CRN This item is restricted for conveying or dispensing water for potable use (human consumption).
• High-capacity, multipurpose valve features a dual lapped disc for improved seating tightness.
• Technical Specification Item Safety Relief Valve Body Material Brass/Bronze Inlet Type MNPT Outlet Type FNPT Inlet Size 1/2 in Outlet Size 3/4 in Factory Set Pressure 25 psi Disc Material Stainless Steel Overall Height 7 3/8 in Application.
